Place of Origin:
Jiangsu, China
Brand Name:
JIN LI DA
Model Number:
Customized
Contact Us

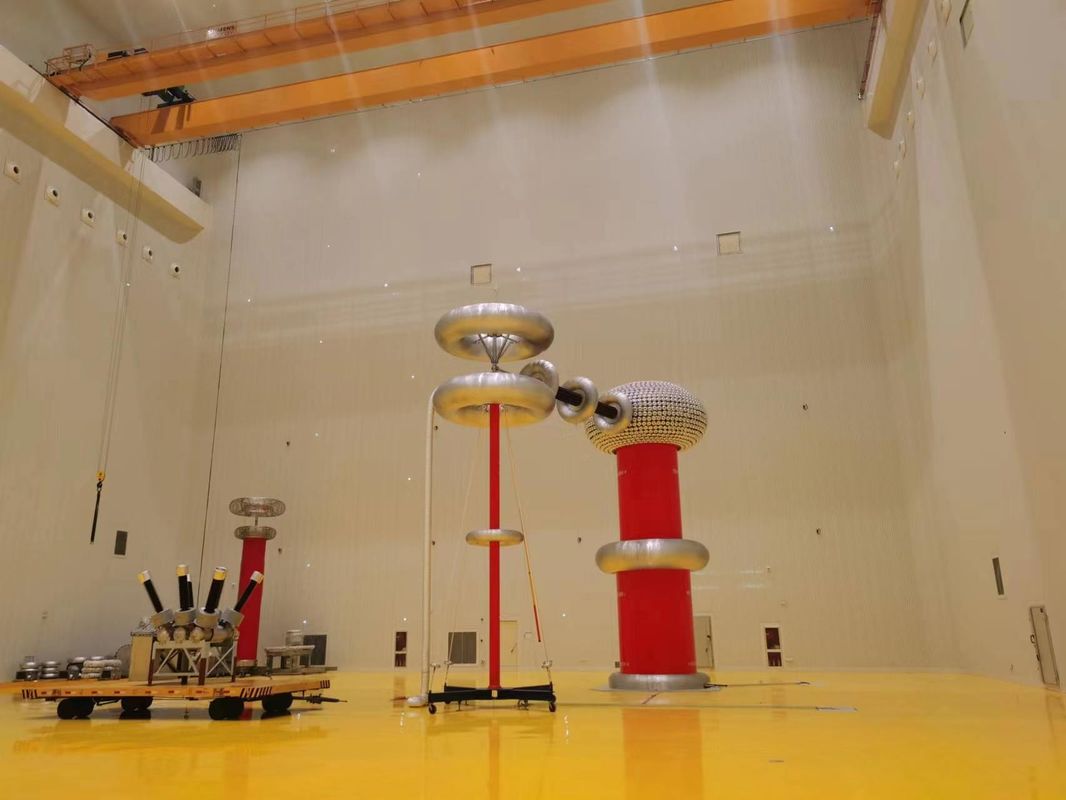

EMI Shielding Siemens (Hangzhou) High Voltage Switchgear Co., Ltd.
Ground shielding: The ground utilizes specialized shielding materials and grounding systems to eliminate ground-based electromagnetic interference.
Isolation design: Different areas within the hall are isolated to prevent mutual interference of internal electromagnetic waves.
Electromagnetic wave filtering: Power and signal lines within the hall undergo filtering and suppression treatments to eliminate internal sources of electromagnetic interference.
48×40×34.3(h)m
Keywords
Small Testing Room
Power Supply Room
Earthing System
Safety Loop
Voltage Rating
| Main Facilities | Outline |
| UHV Contamination Test Hall | Dimensions of fog room:30m x 25m x 30m h. |
| Electromagnetic shielding effect:65dB at 1MHz. | |
| Fog generating equipment:6ton/hr. boiler and spray nozzle in total 150 in 4 different directions. | |
| AC 1000kV Contamination Test Facilities | Testing transformer:1000kV, 5000kVA/ 1 min, 4000kVA/ continuous. |
| Voltage drop of the total system:Less than 5% at 3A, 600 - 1000kV. | |
| Power Source:Short circuit generator (3-phase, 125MVA). | |
| DC 750kV Contamination Test Facilities | Type:Cascaded three phase full-wave rectification with feed-back system. |
| Rated voltage:卤750kV. | |
| Rated current:1A(30mA at 800kV). | |
| Voltage drop of the total system:Less than 5% at 2.5A, 200 - 750kV. | |
| Power Source:Short circuit generator (3-phase, 125MVA). |
FAQ
Q Why customer choose us?
A Jinlida Electron (Changzhou) CO.,LTD specializes in electromagnetic shielding,integrating R&D, production, sales and service. High-level quality control and years of exporting experience help us win trust and loyalty of our customers around the world. Warmly welcome your inquiries and orders for quality test, more favorable sales conditions will be provided to support you expand local market if long-term partnership can be established.
Q Are you trading company or manufacturer
A We are a professional electromagnetic shielding technology company that integrates research and development, design, sales, manufacturing, installation, and service.
Q How long is your delivery time
A Generally the product shall be delivered within XXX Days from the date of receiving the down payment, the specific delivery time depends on the specific product.
Q What is your terms of payment
A Generally 80% TT in advance, balance before shipment.The concrete terms of payment can be negotiated.
Q How about the after service of your product
A 1 year warranty(negotiable); spare parts and technical services will be provided on a long-term basis.
Q How about your after-sales service?
A(1) Installation and commissioning online instructions.
(2) Well-trained engineers available for overseas service.
(3) Worldwide agents and after-sales service available.
